45-SVR AND F45-SVR Series
- Product Code:
- Availability: In Stock
-
$0.00
- For Doors - 1 ¾”- 2 ¼” thick standard. 1 ¾” minimum stile width for single or double door application.
- Chassis - Steel material for Panic and Fire Grade
- Cover - Aluminum Material
- Mounting - Furnished with wood and machine screws. Available thru-bolts on request. Thru bolts are included and standard packaging on fire-rated devices.
- Hand - Non-Handed, Reversible.
- Latch Bolt - Stainless Steel material
- Rod Guide - Stainless Steel material
- ANSI Standard - A156.3, Grade 1
- Cross Bar - Aluminum material; 1" diameter, 0.058" thick
- Dogging Feature - Allen-type key furnished standard on non-fire labeled devices
- UL and ULC Listed - 45-SVR Series for Panic. F45-SVR Series for Fire Exit Hardware for all types of 4' x 8' single doors and 8' x 8' double doors for up to 3-hour fire labeled installations. Conforms to standards UL10C and UBC 7-2-1997 codes.
- Strike - (610) Roller Rim Strike, (620) Top Strike, (233) Bottom Strike, (221) Handicap Bottom Strike
- Finish - Aluminum (ALUM) or Dark Bronze Duranodic (DURO)
TEMPLATES:
- Template - 45-RIM and 45-SVR Series Narrow Cross Bar Exit Device
- Template - ESC45 Series Narrow ESC Trim
- Template - 212 Glass Shim Kit for 45-SVR
INSTALLATION INSTRUCTIONS:

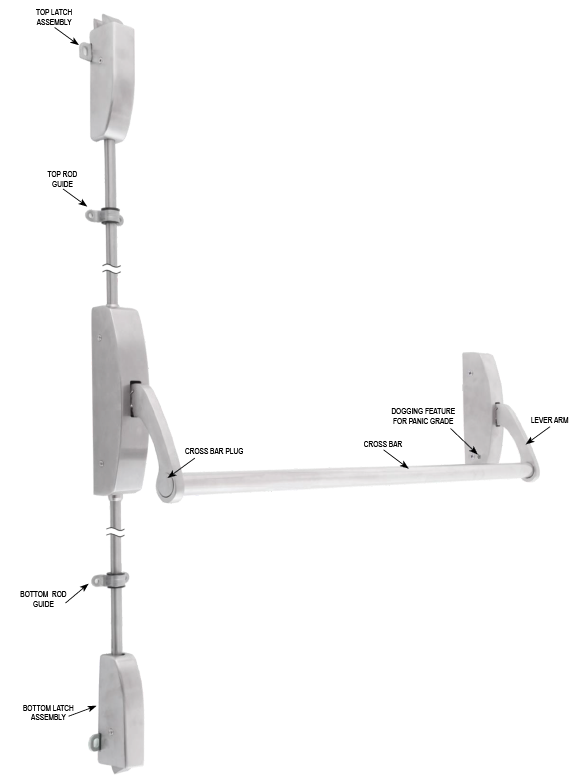

CROSSBAR NARROW STILE SURFACE VERTICAL ROD TYPE EXIT DEVICES
Features & Construction:
- Americans with Disability Act (ADA) compliant. 5lbs opening force on ADA product only.
- ANSI A156.3, Grade 1 Exit Device in Cross Bar Narrow stile Rim
- Trim are thru-bolted for additional security
- Conforms and meets ADA Regulations (ADA product only)
- UL305 & UL10C Fire Exit Hardware. 3 hours.
- (A) label rating on pairs of doors up to 8'0" x 8'0" swinging in same or opposite directions.
- All inside components are made up of high rust-resistant alloy or heavily electroplated steel.
- High shock resistant latching mechanical design for protection from vandalism.
- Uncompromising security and safety in single and double fire exit doors.
- Available in standard functions. Lever and escutcheon trims are Grade 1 construction trims
