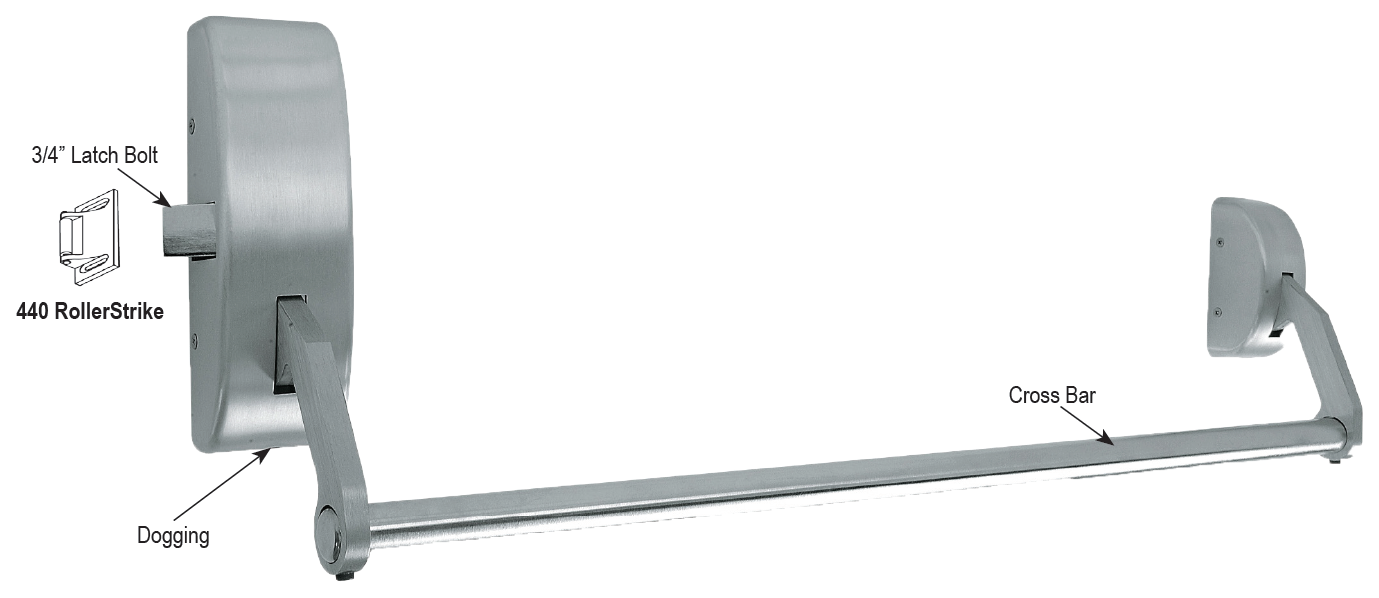

4400 Series

  • $0.00


  • For Doors - 1 ¾" thick standard. 4 ½" minimum stile width for single or double door application using standard 440 strike and pull or lever, thumbpiece, and escutcheon trim.
  • Chassis - Non-Ferrous Alloy (Panic Grade)
  • Cover - Non-Ferrous Alloy. Covers stock hollow metal doors with 161 cut out.
  • Mounting - Furnished with wood and machine screws. Available thru-bolts on request.
  • Hand - Handed, Reversible. Specify handing for convenience.
  • Latch Bolt - Stainless Steel ¾" throw
  • Spring - Stainless Steel throughout
  • ANSI Standard - A156.3, Grade 2.
  • Cross Bar - 1" diameter Steel, 0.058" thick for 36" or 48" wide doors
  • Strike - Roller Type
  • Dogging Feature - Allen-type key furnished standard
  • Mullion - Available
  • UL and ULC Listed - 4400 Series for Panic.
  • Finish - US26D Satin Chrome, Dark Bronze Duranodic (DURO).
  • Anti-Microbial Coating - Available on US26D only. Use part # ANTB-EXIT
  • Door Size - 4400EO36 for 36" doors, 4420EO48 for 48" doors

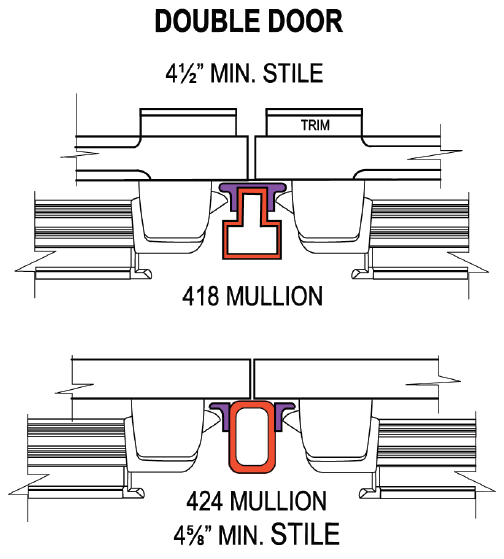

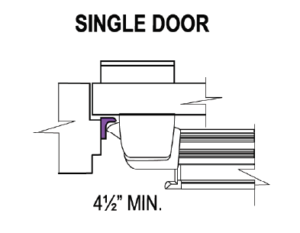

Minimum Stile Requirements

RIM TYPE EXIT DEVICES

  • ANSI A156.3, GRADE 2 Standard Duty Rim Type Exit Device
  • Lifetime Warranty
  • UL listed for Panic (UL 305)
  • 4 ½” minimum stile width required for single or double door application using standard 440 strike
  • Pull lever, thumb piece and escutcheon trims available
  • Optional Mullion
  • Architectural plated finishes available

NOTE: Products are sold through authorized distributors ONLY.
