Barrington BA Series

  • $0.00


  • DOOR RANGES: - 1 3/8" to 1 3/4" thickness doors
  • BACKSET: - 2 3/4" Standard, 2 3/8", 3 3/4" and 5" extension available.
  • STRIKES: - ANSI strike standard, 4 7/8" x 1 1/4" . Optional "T" and full lip strike available on request.

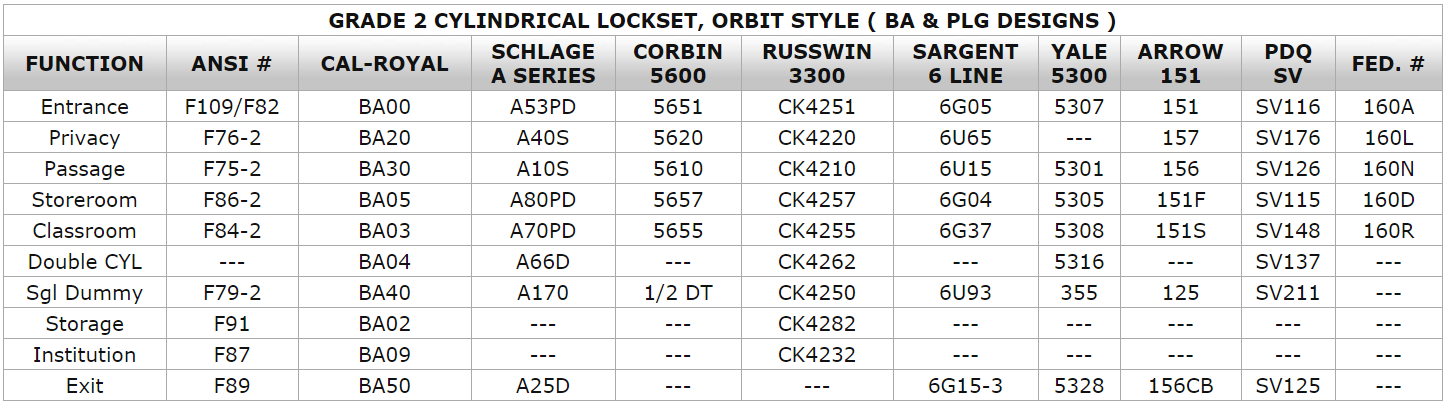

  • ADDITIONAL KEYWAYS: - 6 pin solid brass "C" keyway standard. Schlage E, Schlage C-K, Russwin D1-2-3-4, Corbin 59/60, Corbin-Russwin L4, Sargent LA-LB-LC, Falcon/Weiser E, Arrow A, Yale 8, Yale GA and Kwikset. Can also accept Medeco, Assa, Kaba and Cal-Royal HSK High Security Cylinders KEYING- 6-pin "C" keyway cylinder, 2 keys per lock.
  • BORE DIAMETER: - 1" for latch. 2 1/8" for lock housing.
  • INTERCHANGEABLE CORE -Interchangeable Core locks will accept compatible 6 or 7 pin cores with BEST, FALCON and ARROW. Prefix "IC" before part number. Available combinated or uncombinated. Temporary construction cores available. Factory keying with control key and masterkey available.
  • LATCH FACEPLATE - 2 1/4" x 1 1/8" for 2 3/4" backset, 2 1/4" x 1" for 2 3/8" backset.
  • EXPOSED TRIM - Wrought brass, bronze or stainless steel.
  • ANSI STANDARDS - Meets or exceeds requirements of BHMA/ANSI A156.2 series 4000 for grade 2 (FF-H-106C).

Quality Designed and Engineered for Commercial Buildings

  • Meets or exceeds requirements of BHMA / ANSI A156.2 Series 4000, Standard Duty, GRADE 2
  • Lifetime Warranty
  • UL listed 3-hour rating, conforms to standards UL10C and UBC 7-2-1997
  • Solid brass 6 pin “C” keyway cylinder, optional other keyways
  • Optional Interchangeable Core
  • Concealed screw mounting
  • Long spindle hub eliminates hub wobble
  • Meets the Buy American Act

NOTE: Products are sold through authorized distributors ONLY.
