BA/T220 Combo

  • $0.00


BA00

  • DOOR RANGES 1 ⅜” to 1 ¾” thickness doors
  • BACKSET 2 ¾” Standard, 2 ⅜” Optional
  • LATCH FACEPLATE 2 ¼” x 1 ⅛” for 2 ¾” backset, 2 ¼” x 1” for 2 ⅜” backset
  • STRIKES ANSI strike standard, 4 ⅞” x 1 ¼”. Optional “T” and full lip strike available on request
  • EXPOSED TRIM Wrought Brass, Bronze or Stainless Steel
  • BORE DIAMETER 1” for latch. 2 ⅛” for lock housing
  • ANSI STANDARDS Meets or exceeds requirements of BHMA / ANSI A156.2 Series 4000 for Grade 2 (FF-H-106C)

T220

  • DOOR RANGES 1 ⅜” to 1 ¾” thickness doors
  • BACKSET Adjustable 2 ⅜” or 2 ¾”
  • DEADBOLT FACEPLATE Latch bolt: Standard 2 ¼” x 1” packed with ⅛” plastic filler to convert 1” face plate to 1 ⅛” wide door preparations
  • TRIM Wrought Brass or Stainless Steel
  • BORE DIAMETER 1” for latch, 1 ½” or 2 ⅛” for lock housing
  • STRIKE 1 ⅛” x 2 ¾” Square Corner

For pricing & availability inquiries contact your Local Distributor or click here for the list of our Sales Representatives

[Download File]

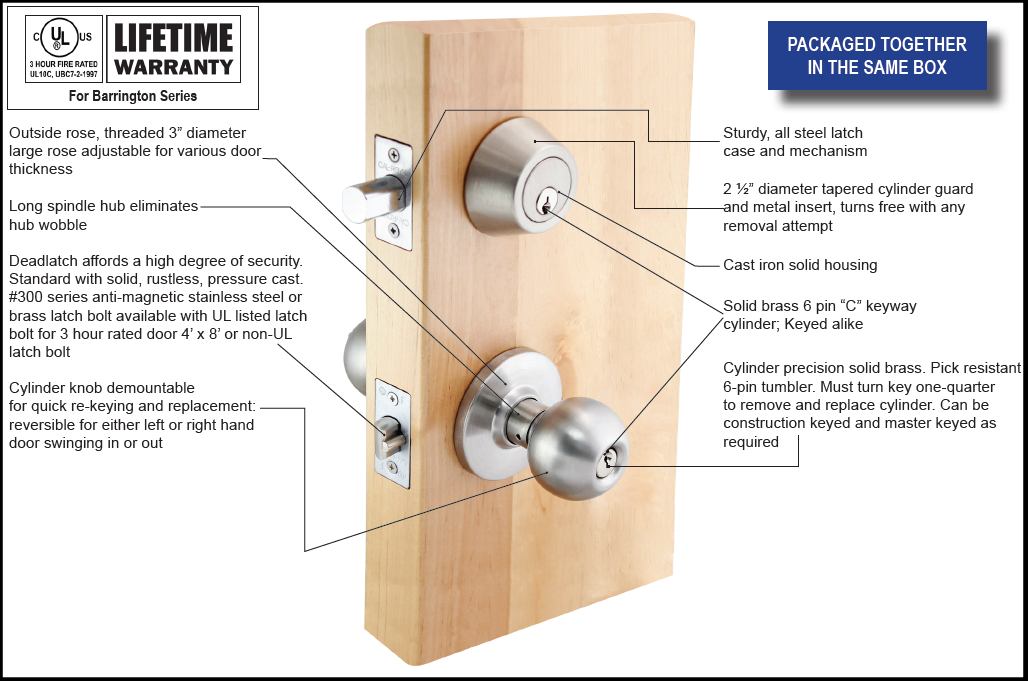

An Entrance Knobset and Single Cylinder Deadbolt Combo (Packed Together). Quality Designed and Engineered for Commercial and Residential Applications

  • ANSI GRADE 2, Standard Duty
  • 6-PIN “C” Keyway Cylinder, Keyed Alike


NOTE: Products are sold through authorized distributors ONLY.
