EGRESS DELAY

• All in One Device
• 15 second exit delay (Factory set to 15 secs)
• 1 or 2 second nuisance delay
• Alarm and Lock reset
• Selectable1, 15, 20, or 30 second bypass
• Sustained bypass

BUILT-IN ANNUNCIATION

• Armed mode
• Nuisance mode
• Irreversible egress mode
• Release mode

Optional External Inhibit Input

• Remote override
• Remote reset

CODE COMPLIANCE

• IFC International Fire Code
• IBC International Building Code
• NFPA 101 Life Safety Code
• NFPA 1 Uniform Fire Code
• California Building Code
• Field selectable automatic or manual power up after emergency release or power loss

CONTROL INPUTS

• 15 second request-to-exit /delayed release
• 1, 15, 20 or 30 seconds bypass input with anti-tailgate and jumper selectable door prop alarm
• Reset

TRIGGER MODES

• Egress Alarm triggered by Push Bar
• Trigger input from external device field selectable (N / O or N / C)

MONITORING OUTPUTS

• Armed mode
• Nuisance mode
• Release status

Technical Specifications

• Currrent Drawing : 240mA @24VDC
• Operation Temparature : 0~49 °C
• Operation Humidity : 0~85% Non-Condensing

Power Supply CR602RF 1 Amp / CR631RF 1.5 Amp

• Field selectable 12 or 24V DC, regulated and fi ltered
• Auto resetting output circuit protection
• Isolated 13.5 / 27V DC battery charger
• Low battery disconnect
• Emergency release input
• Field selectable UBC & California compliant manual power up
• Input, output and battery status LED’s
• 12” x 12 ¼” x 3 7/8” enclosure
• Choice of output and door control modules
• Batteries not included

APPLICATION

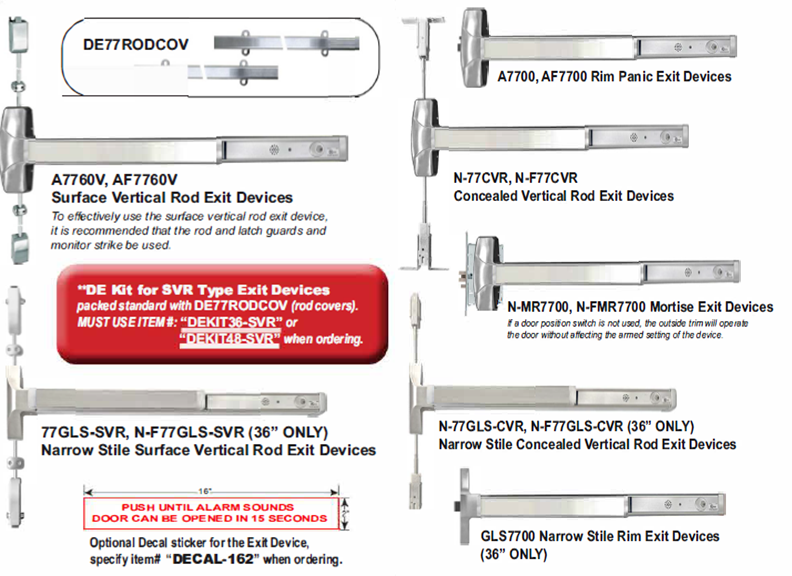

When unauthorized egress is initiated the device delays egress through the door for 15 seconds (or 30 seconds). Meanwhile, the person exiting must wait while personnel or security responds. The door unlocks after 15 seconds have elapsed permitting egress. When powered by a fire control supervised power supply, the lock will release immediately in an emergency. FOR USE WITH: (FIRE AND NON-FIRE)

• A7700, AF7700 Rim Exit Device
• A7760V,  AF7760V Surface Vertical Rod Exit Device
• N-77CVR, N-F77CVR Concealed Vertical Rod
• N-MR7700, N-FMR7700 Mortise Lock Rim Exit Device
• GLS7700 Narrow Stile Rim Exit Device (on 36" Only)
• N-77GLS-CVR, N-F77GLS-CVR Narrow Stile Concealed Vertical Rod (on 36" only)*
• 77GLS-SVR, 77GLS-SVR Narrow stile concealed Vertical Rod (on 36"only)*

* Recommends use of rod and latch guards and strike monitor for surface vertical rods

Installation Instructions :

• Manual Delayed Egress
• DE7700, Wiring for Single Door

[Download File]

[Download File]

• For use in institutions, schools, universities, commercial buildings where heavy duty reliable operation is a requirement. GRADE 1
• 7700 Series Delayed Egress can also be used for fire exit hardware for all types of 4’ x 8’ single doors and 8’ x 8’ double doors for up to 3 hour fire labeled installations, it conforms to standards UL10C and UBC 7-2-1997 codes.
• 5 Year Warranty
