CRPT Series

  • $0.00


  • UL 10C-Listed for up to 3 hours for Fire Rated doors and frames Standard 7-2, “Fire Test of Door Assemblies” (1997)
  • UL-Listed as Miscellaneous Fire Door Accessories
  • Classified according to Uniform Building Code (UBC)
  • Unit is mortised into the edges of the door and frame during installation and is completely concealed when door is in the close position
  • Designed for use in high traffic and heavy volume situations
  • Packaged individually with fasteners for wood, steel or aluminum doors and frames
  • All parts are made of metal including back boxes - no plastic parts
  • Crimp connectors are supplied for a more secure and clean connection
  • Housing Dimensions: 9” H x 1 ¼” W x 1 ⅝” D (229mm x 32mm x 41mm)
  • Minimum door thickness - 1 ¾”
  • Approximate shipping weight: 2.25 lbs.
  • Standard Finishes:
    • AL - Aluminum
    • DU - DURO

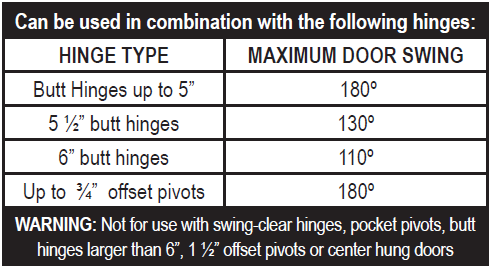

  • Not for use with swing-clear hinges, pocket pivots, butt hinges larger than 6”, 1 ½” offset pivots or center hung doors

Technical Specifications

CRPT-2

  • (2) 18 AWG Wires
  • Max. Rating: Up to 2 AMPS @ 24 VDC, 2A or 120 VAC NEC Class 3

CRPT-10

  • (10) 24 AWG Wires
  • Max. Rating: Up to 1 AMP @ 24 VDC, 1A

CRPT-10C

  • (10) 24 AWG Wires
  • Max. Rating: Up to 1 AMP @ 24 VDC, 1A
  • 3 separate quick-link connectors for a more organized connection

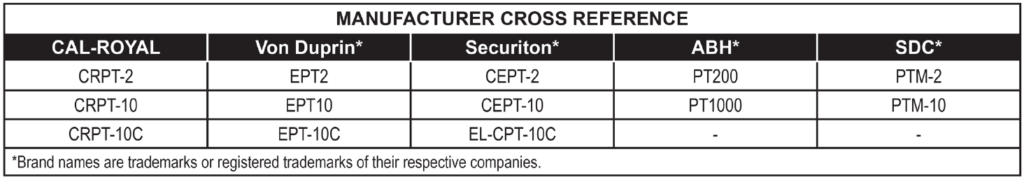

crpt-10__

Concealed Power Transfer Units

  • CRPT-2, CRPT-10 and CRPT-10C are designed to discreetly transfer electrical power from the frame to the door in a very secure manner
  • UL 10C-Listed for up to 3 hours for Fire Rated doors and frames Standard
  • UL-Listed as Miscellaneous Fire Door Accessories

NOTE: Products are sold through authorized distributors ONLY.
