Electrified Hinges

  • $0.00


  • The Electrified Hinge makes door wiring easy, safe and reliable
  • Power can now be transferred from the frame into the door either concealed or exposed
  • We are now able to monitor the position of the door, transfer power and incorporate both functions into a single hinge
  • We now have the ability to electrify other hardware items such as Exit Devices, Electric Strikes, and Electrified Locks
  • Full Mortise Hinges are highly recommended for modification purposes
  • Monitoring can be supplied on a half surface hinge if the need arises
  • It is recommended that the center hinge location be used with all electrically modified hinges
  • The maximum voltage allowed in electrified hinges is 48 volts. The current (amperes) should also be taken into consideration

4, 6 and 8-wire available on all standard weight, heavy weight and concealed ball bearing hinges in all sizes. Specify Hinge.

ENERGY TRANSFER HINGES FOR CYLINDRICAL LOCKS, MORTISE LOCKS AND PANIC TRIMS

Prefix ELE + (No. of wires) before ITEM #

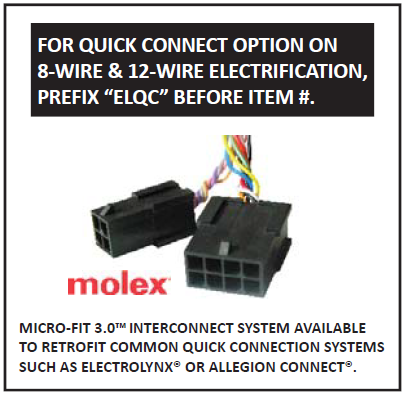

  • ELE4: 4 Wires - 26 gauge - 1A @ 24V (per pair) - ELQC4: (For QC Option)
  • ELE6: 6 Wires - 28 gauge - 1A @ 24V (per pair)
  • ELE8: 8 Wires - 28 gauge - 1A @ 24V (per pair) - ELQC8: (For QC Option)
  • ELE12: 12 Wires - 28 gauge - 1A @ 24V (per pair) - ELQC12: (For QC Option)

ENERGY TRANSFER HINGES FOR ELECTRIFIED PANIC BAR (ELR)

Prefix ELELR + (No. of wires) before ITEM #

  • ELELR4: 2 Wire -18 gauge, 5A (16A in-rush for 300 ms.) + 2 Wire -26 gauge
  • ELELR6: 2 Wire -18 gauge, 5A (16A in-rush for 300 ms.) + 4 Wire -28 gauge
  • ELELR8: 2 Wire -18 gauge, 5A (16A in-rush for 300 ms.) + 6 Wire -28 gauge
  • ELELR12: 2 Wire -18 gauge, 5A (16A in-rush for 300 ms.) + 10 Wire -28 gauge
  • Energy Transfer Hinges for Cylindrical Locks, Mortise Locks and Panic Trims
  • Energy Transfer Hinges for Electrified Panic Bar (ELR)
