Challenger Series

  • $0.00


  • APPLICATIONS For offices, schools, hospitals, apartments, hotel / motel, residential, commercial and public buildings.
  • DOOR RANGES 1 ⅜” to 2” thickness.
  • BACKSET 2 ¾” Standard, 2 ⅜”, 3 ¾” and 5” optional.
  • LATCH BOLT ½” Throw solid brass, reversible for RH or LH applications. UL Listed.
  • LATCH FACEPLATE 2 ¼” x 1”, square corner packed with ⅛” plastic filler for 1 ⅛” width.
  • ANSI STANDARDS Meets or exceeds requirements of BHMA / ANSI A156.2 Series 4000, Grade 2 (FF-H 106C), 400,000 cycles.
  • EXPOSED TRIM Wrought brass, bronze or stainless steel, levers are Zinc casting, plated to match trim finish.
  • KEYING 6-pin “C” keyway cylinder, 2 keys per lock. Keying as per individual job requirement.
  • CYLINDER & KEYWAYS 6 pin solid brass “C” keyway standard. Schlage E, Schlage C-K, Russwin D1-2-3-4, Corbin 59 / 60, Corbin-Russwin L4, Sargent LA-LB-LC, Falcon / Weiser E, Arrow A, Yale 8, Yale GA and Kwikset. Can also accept Medeco, Assa, Kaba and Cal-Royal (HSK) High Security Cylinders.
  • INTERCHANGEABLE CORE Interchangeable Core locks will accept compatible 6 or 7 pin cores with BEST, FALCON and ARROW. Prefix “IC” before part number. Available combinated or uncombinated. Temporary construction cores available. Factory keying with control key and master key available.
  • STRIKES ASA strike standard, “T” and full lip strike available on request.
  • TACTILE & LEAD LINING available upon request.


FINISHES AND FUNCTIONS

INSTALLATION INSTRUCTIONS

PROFILE

SG DESIGN

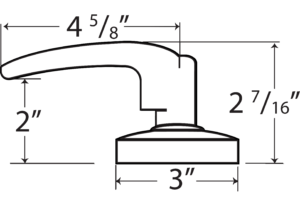

MANHATTAN "MAN" DESIGN

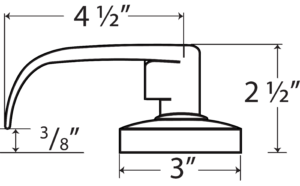

DOVER "DOV" DESIGN

ASTOR "AST" DESIGN

ROCHESTER "ROC" DESIGN

For pricing & availability inquiries contact your Local Distributor or click here for the list of our Sales Representatives

[Download File]

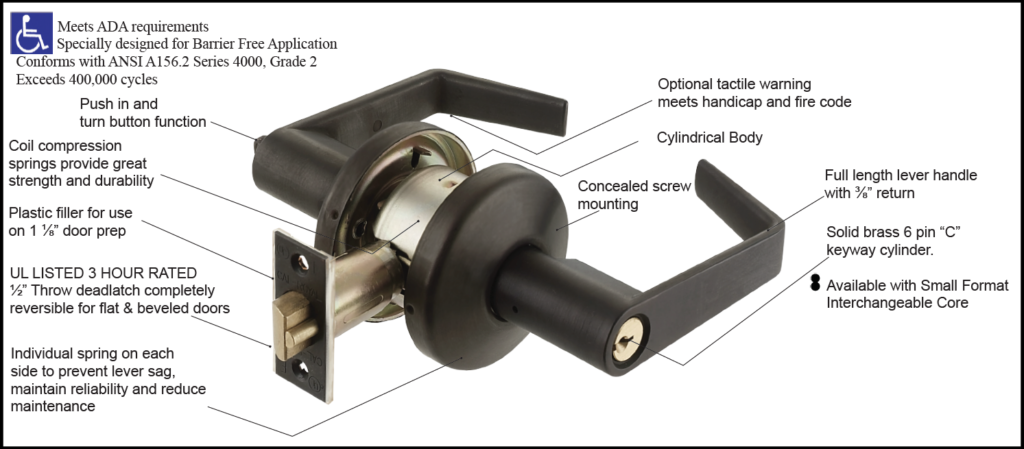

For Offices, Schools, Hospitals, Apartments, Hotel / Motel, Residential, Commercial and Public Buildings.

  • BHMA Certified Lifetime Warranty, GRADE 2
  • Conforms with ANSI A 156.2 Series 4000, Standard Duty, Barrier Free,
  • UL listed 3-hour rating, conforms to standards UL10C and UBC 7-2-1997
  • Solid brass 6 pin “C” keyway cylinder, optional other keyways
  • Optional Interchangeable Core
  • Push in and turn button function
  • Individual spring on each side to prevent lever sag, maintain reliability and reduce maintenance
  • Optional Tactile and Lead Lining
  • Meets the Buy American Act





NOTE: Products are sold through authorized distributors ONLY.
