- Product Code:
- Availability: In Stock
- Standard Profile Beveled Vision Lite
- 20 Gauge Cold Rolled Steel
- Mitered welded corners with counter sunk mounting holes
- Single side attaching with matching mounting screws included
- For use with 3/16” to ¼” glass thickness
- Also available for 1” glass thickness (10VL Series)
- Designed for use with 1 ¾” doors only
- Baked on powder coat finish
- Color: Standard Bronze
- Fastener: # 8 x ⅞” flathead phillips head SMS
- Order size is equal to opening size
- Visible vision opening is 2” under order size
- Glass size dimension is 1” under complete order size
- Follow all door manufacturer’s instructions for use and installation of all products
- Custom sizes are available.
*Shaded Items are Non-Fire Rated. See Lites & Louvers Intertek Certification for detailed information on Fire Ratings, or click here.

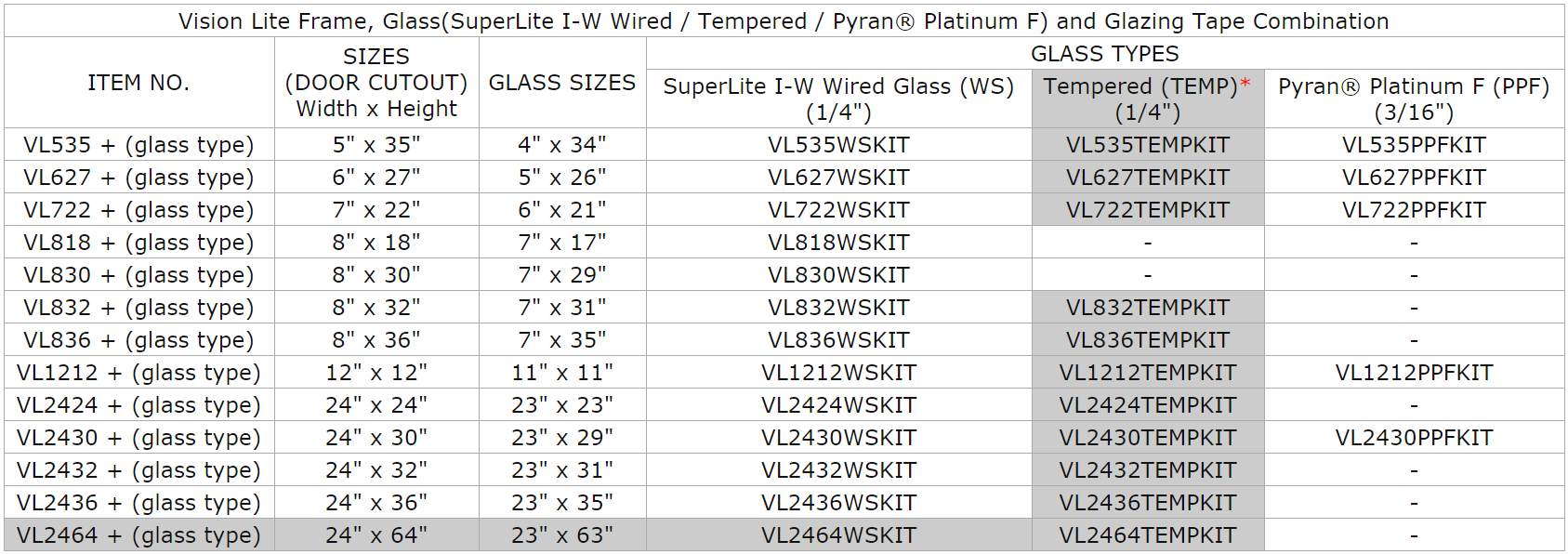

Vision Lites Standard Profile
- Vision Lite Frame
- Glass types are Non-Fire Rated Tempered (¼”), Fire Rated PROTECT3™ Wired Safety (¼”) and Pyran® Platinum F Glass (3/16”)
- Glazing Tape Combination
- For use in fire rated door applications under positive and neutral pressure.
- Intertek testing certification in compliance to NFPA 252 (2000), UL 10C (2009), CAN/ULS104 (2010), NFPA (201) and CSI CODE 0870 00.
