SC Series

  • $0.00

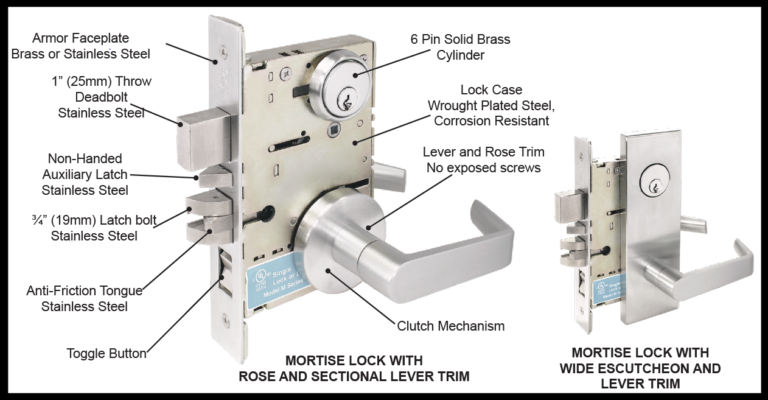

  • FOR DOORS - 1 ¾” (44.5mm) thick standard. For doors over 1 ¾” (44.5mm), specify door thickness
  • LOCK HAND - Lock bodies are easily fielded reversible, no need to specify hand when ordering
  • BACKSET & STRIKE - 2 ¾” (70mm) only backset. Brass or stainless steel strike; ANSI Standard A115.1; curve lip with dust box
  • LOCK CASE - Heavy Duty wrought steel, zinc dichromate plated
  • CENTER TO CENTER - Center of the lever to center of the cylinder is 3 7/8” (98mm)
  • ARMOR FACEPLATE - Brass or stainless steel; 8” x 1 7/32” (203mm x 31.3mm); ANSI Standard A115.1
  • DEADBOLT - 1” (25.4mm) throw; hardened stainless steel
  • LATCH BOLT - ¾” (19mm) throw; one-piece stainless steel with anti-friction reversible tongue
  • CYLINDER & KEYWAYS - 6-pin solid brass “C” keyway standard. Optional: Schlage E, Schlage C-K, Russwin D1-2-3-4, Corbin 59 / 60, Corbin-Russwin L4, Sargent LA-LB-LC, Falcon / Weiser E, Arrow A, Yale 8, Yale GA, and Kwikset. Can also accept Medeco, Assa, Kaba, and Cal-Royal HSK High-Security Cylinders.
  • INTERCHANGEABLE CORE (IC) - Interchangeable Core locks will accept compatible 6 or 7 pin cores with BEST, FALCON, and ARROW. Also available with SCHLAGE, CORBIN / RUSSWIN D-1 thru 4, SARGENT LA, and YALE GA Large Format Cylinders.
  • TOGGLE BUTTON - High rust-resistant chrome plated zinc alloy
  • MASTER KEYING - Can be master-keyed or grand master-keyed, construction keying available
  • AUXILIARY LATCH: Stainless Steel, non-handed
Available with Best, Falcon and Arrow, Schlage, Corbin / Russwin, Sargent, and Yale Interchangeable core.
  • ICSC - Schlage LFIC
  • ICCR - Corbin / Russwin LFIC
  • ICSR - Sargent LFIC
  • ICYA - Yale LFIC


CERTIFICATIONS

  • ANSI / BHMA     Meets ANSI / BHMA A156.13 Series 1000, Operational & Security  Grade 1 Standards
  • UL / cUL             UL and UL Listed to Canadian safety standard for A label (3-hour fire door); stamped letter F and UL symbol on armor faceplate
  • POSITIVE PRESSURE       Meets positive pressure requirements UL 10C and UBC 7-2 (1997)
  • ADA           Meets ADA requirements, specifically designed for Barrier Free Application

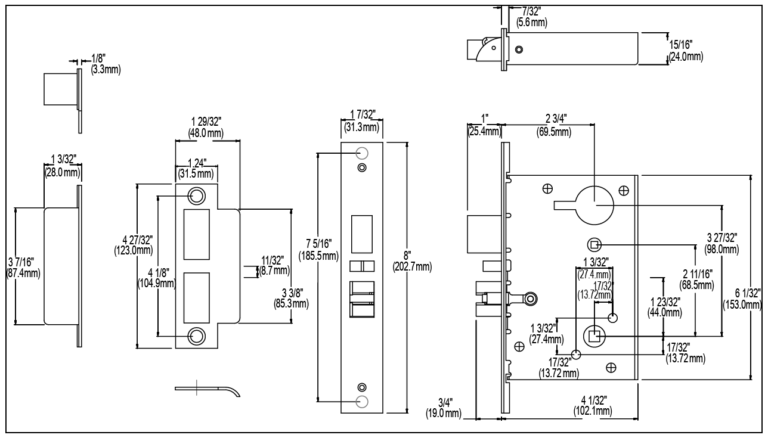

DIMENSIONS

All products are shipped non-handed. Easily field reversible.

ADA Thumbturn

Optional Disability Turn (ADA) on applicable mortise locks. Prefix "ADA" before Mortise lock PART#.
  • Order kit: SCSADA - ADA Thumbturn for Sectional SCEADA - ADA Thumbturn for Escutcheon

FOR 2" up to 2 1/4" thick door

  • Order kit: SCSKIT200 – for sectional trim SCEKIT214 – for escutcheon trim

LEAD LINING

  • Available on request
  • Prefix LEAD before Mortise Lock PART#.

ANTIMICROBIAL COATING

  • Available on request on US26D and US32D finishes.
  • Longer factory lead time usually applies.
  • Prefix "ANTB" before PART#.

HOW TO CHANGE HANDING

If the handing of the latch bolt does not match the door handing, remove the locking screw and pull the latch bolt out from the lock case, then turn 180°, making the bevel of the latch bolt face the opposite hand. Replace the latch bolt and fasten the locking screw.

Indicator Mortise Locks

Privacy with Key Outside and "OCCUPIED" Indicator

SC8495
  • Deadbolt threw or retracted by key outside or inside thumb turn
  • Knob/lever retracts latch bolt from either side
  • Throwing deadbolt locks outside knob/lever and displays “OCCUPIED” plate
  • Rotating inside knob/lever simultaneously retracts both deadbolt and latch bolt and unlocks outside knob/lever
  • Inside lever is always free for immediate egress

Faculty Restroom with Key Outside and "OCCUPIED" Indicator

SC8486
  • Latch bolt retracted by key outside or by knob/lever inside. Outside knob/lever always fixed
  • Deadbolt threw or retracted by inside thumb turn
  • When deadbolt is thrown, the “OCCUPIED” plate is displayed and all keys become inoperative except emergency keys
  • Turning inside knob/lever simultaneously retracts both deadbolt and latch bolt
  • Auxiliary latch deadlocks latch bolt when the door is locked
  • Inside lever is always free for immediate egress

Privacy with Deadbolt, Coin Turn Outside, and "OCCUPIED" Indicator

SC8445
  • Deadbolt threw or retracted by inside thumb turn or outside coin turn
  • Rotating outside coin turn retracts deadbolt and unlocks outside knob/lever
  • Latch bolt retracted by knob/lever from either side
  • Throwing deadbolt locks outside knob/lever and displays “OCCUPIED” plate
  • Rotating inside knob/lever simultaneously retracts deadbolt and latch bolt and unlocks outside knob/lever
  • Inside lever is always free for immediate egressElectrified Mortise Locks

SC400 Series

Electrified Mortise Locks

Available with or without deadbolt

ElectrifiedPart #ELEC (Specify Options) FEATURES:

  • UL and CSFM Listings
  • Continuous duty solenoids for cooler operation during “continuously ON” applications
  • Allows for an AC or DC power source through an appropriate power supply. No polarity.
  • Low current draw
  • Numerous switch options
  • 3 year “No Hassle” warranty

OPTIONS:

  • Voltage requirement -12V AC / DC or 24VAC/DC
  • Amperage – 600mA+ 10%  @ 12V or  350mA +10% @ 24V
  • Solenoid coil resistance - 12V = 20 Ω + 5% or 24V = 80 Ω+ 5%
  • Power consumption - 7.2 watts + 10%
  • Function – available Fail-Safe, "Electrically Locked"(EL)  or                        Fail Secure, "Electrically Unlocked" (EU)

RX - Request to Exit Switch (Monitor the inside handle)

 Refer on the catalog page for more Info & Features:



For pricing & availability inquiries contact your Local Distributor or click here for the list of our Sales Representatives

[Download File]

Extra Heavy Duty Mortise Locks with CLUTCH Free-wheeling

  • Can retrofit Schlage L9000 Series mortise lock without drilling any additional holes on the door for sectional and escutcheon trims
  • Fully reversible design
  • No exposed mounting screws on the outside and inside trims
  • The outside lever has a Clutch (Free-Wheeling design). The lever rotates when the lever is locked preventing excessive force from being applied to the horizontal lever. The design decreases the chance of the lever being broken or damaged
  • Lock body conforms to all dimensional and operational performances of ANSI A156.13, Grade 1, exceeds 1,000,000 cycles

NOTE: Products are sold through authorized distributors ONLY.
